Technical Specification Document

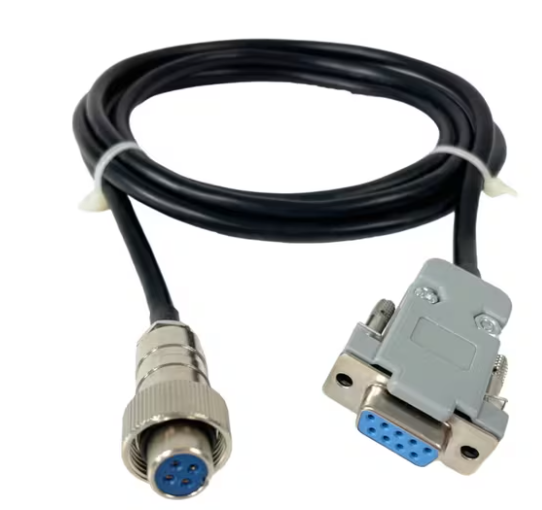

RS-232 to AE 403 Cable (4F-9F) – 6 Foot
Model: 3014012701

---

1. Product Overview

• Description: 6-foot shielded serial communication cable with RS-232 to AE 403 (4F-9F) connectors.

• Primary Use: Data transmission between RS-232 compatible devices and AE403/AGF/AGB/Gladiator systems.

---

2. Technical Specifications

2.1 Physical & Electrical Properties

• Cable Length: 6 feet (1.83 meters).

• Connectors:

  • RS-232 End: DB9 male/female (verify exact type).

  • AE 403 End: 4F-9F connector (industry-standard pinout).

• Wire Gauge: [Specify if known, e.g., 28AWG].

• Shielding: Foil + braid shielding for EMI/RFI protection.

• Jacket Material: PVC (flexible, abrasion-resistant).

2.2 Performance

• Baud Rate Support: Up to 115.2 kbps (typical for RS-232).

• Signal Integrity: Twisted-pair design to minimize crosstalk.

2.3 Environmental & Mechanical

• Operating Temperature: -20°C to +60°C.

• Weight: 1 kg (net), 2.204 lbs (shipping).

---

3. Compatibility

• Compatible Devices:

  • Controllers: AE403, AGF, AGB series.

  • Systems: Gladiator and other RS-232-enabled hardware.

---

4. Ordering & Packaging

• Model Number: 3014012701.

• Packaging: Individually packed with product label.

---

5. Certifications & Compliance

• Standards: Compliant with RS-232 TIA/EIA-232-F.

• Safety: RoHS-compliant (lead-free).

---

6. Notes

• Warranty: Refer to manufacturer’s warranty policy.

• Alternative Models: Contact supplier for custom lengths or connectors.
