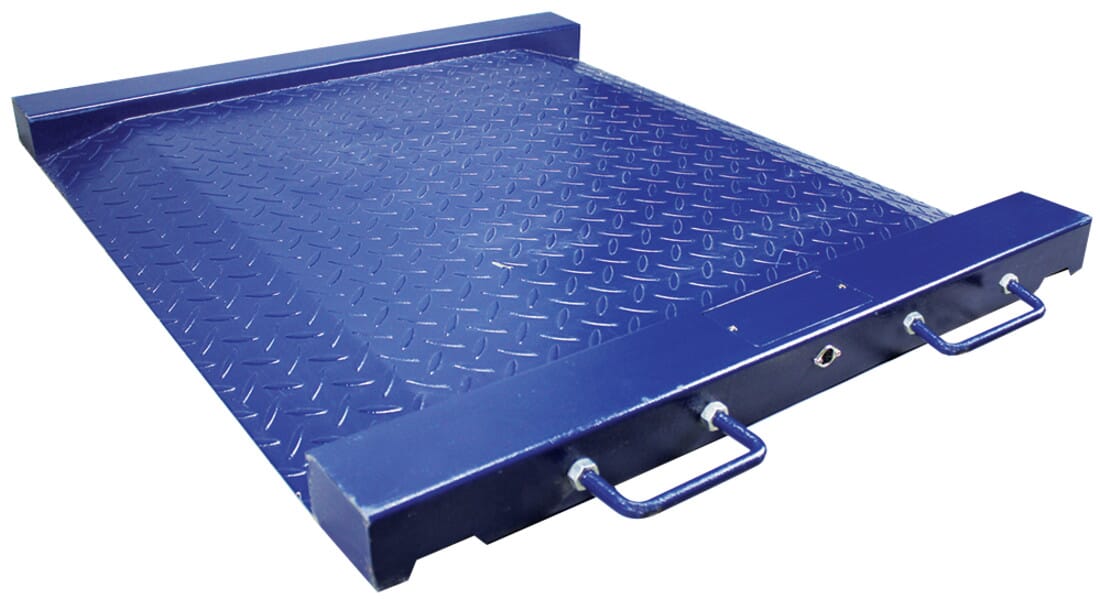

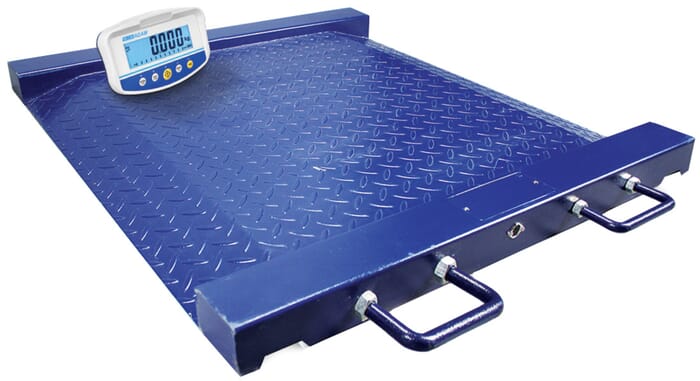

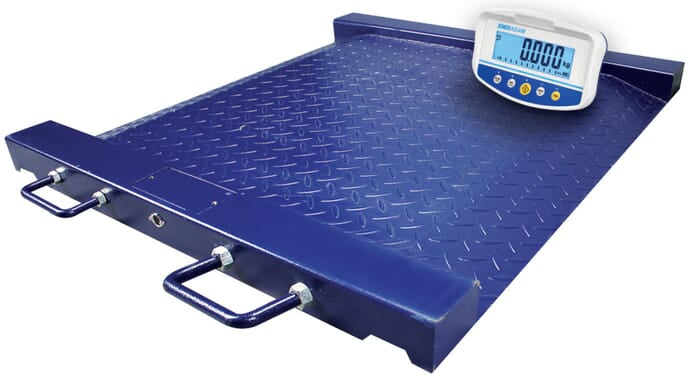

PTM Drum Platforms with GK-S Indicator

PTM 500 [GK-S] Drum Weighing Platform - Technical Specifications

Capacity: 500kg
Readability: 0.1kg
Pan Size: 580x760mm
Platform Height: 75mm (low-profile)
Overall Dimensions: 803x1020x75mm
Net Weight: 44kg

Key Features:
- Low-profile design with dual ramps for easy loading of drums, wheelchairs and dollies
- Mild steel construction with diamond plate surface for durability
- Integrated wheels and handles for portability
- GK-S indicator with backlit LCD display (25mm digits)
- Color-changing display for checkweighing functions
- 5-button keypad for simple operation

Weighing Functions:
- Basic weighing
- Parts counting
- Percentage weighing
- Checkweighing with visual/audible alerts
- Accumulation/memory functions

Technical Details:
- Repeatability: ±100g
- Linearity: ±200g
- Internal Resolution: 1:1,600,000
- Weighing Units: kg, g, lb, lb:oz, oz
- Interfaces: RS-232 (standard), optional USB
- Power: AC adapter (included), optional battery
- Operating Temperature: -10°C to 40°C

Applications:
- Drum and barrel weighing
- Wheelchair weighing
- Industrial and warehouse applications
- Logistics and shipping

Warranty: 3 years

Optional Accessories:
- Rechargeable battery pack
- RS-232 to USB adapter
- Calibration certificate

The PTM 500 provides a durable, portable solution for weighing heavy containers and equipment in industrial environments. Its low-profile design with ramps facilitates easy loading while maintaining weighing accuracy.
