PTM Drum Platforms

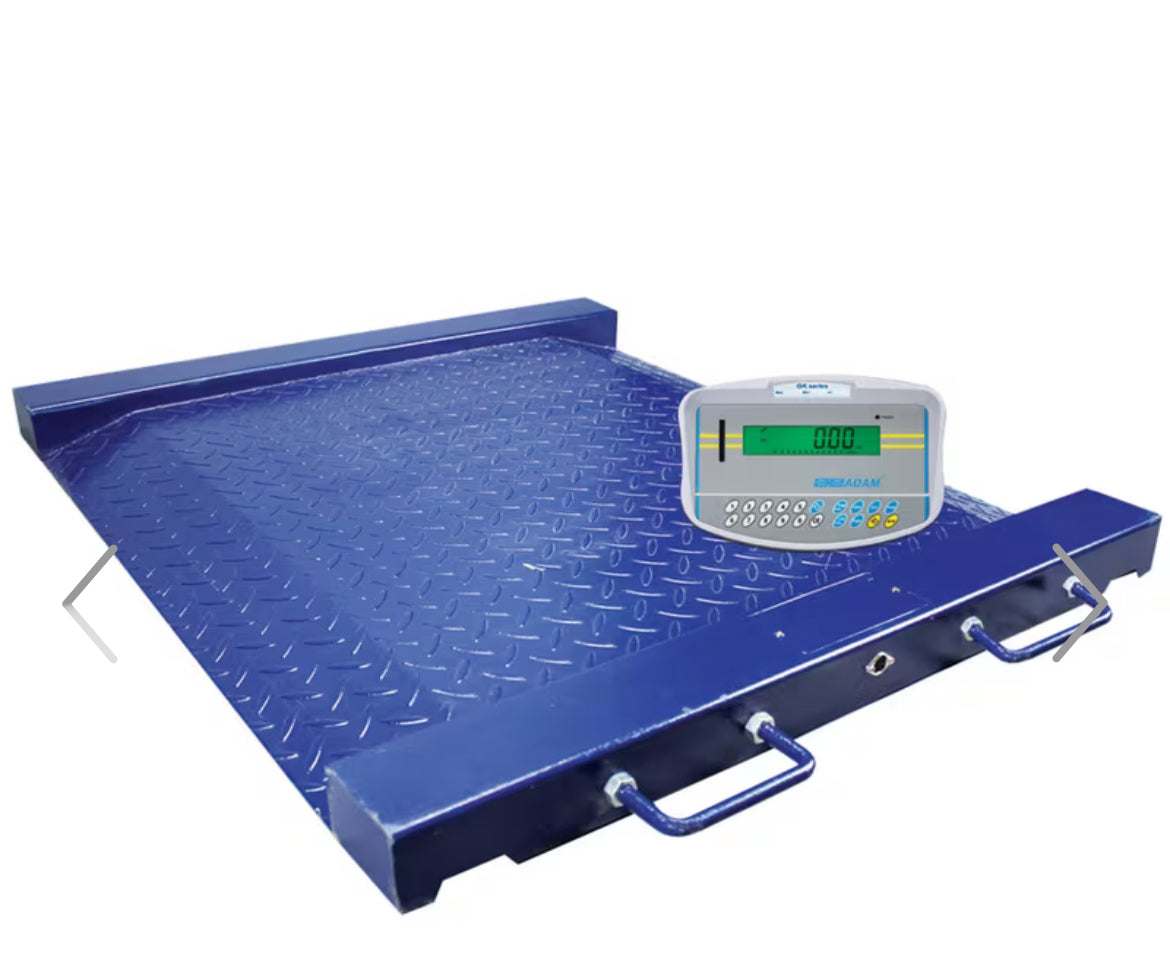

Adam Equipment PTM 500 [GK] Drum and Wheelchair Platform Scale

The Adam Equipment PTM 500 [GK] is a versatile platform scale designed for weighing wheelchairs, drums, and other large objects. Its low-profile base and integrated ramps on both sides facilitate smooth transitions from the floor to the platform, making it suitable for medical facilities, warehouses, and industrial environments.

Technical Specifications:

• Model: PTM 500 [GK]

• Capacity: 500 kg (1100 lb)

• Readability: 0.1 kg (0.2 lb)

• Repeatability: 100 g (0.4 lb)

• Linearity: 200 g (0.4 lb)

• Pan Size: 580 x 760 mm (22.8” x 29.9”)

• Weighing Units: kg, lb, lb:oz, N, oz

• Stabilization Time: 2 seconds

• Interface: RS-232

• Calibration: External calibration

• Display: Backlit LCD with 20 mm high digits

• Power Supply: 12VDC 800mA adapter or internal rechargeable battery

• Maximum Battery Life: Up to 70 hours

• Operating Temperature: -10° to 40°C (14° to 104°F)

• Construction: Mild steel base

• Net Weight: 44 kg (97 lb)

• Overall Dimensions: 805 x 1020 x 75 mm (31.7” x 40.2” x 3”)

Features and Benefits:

• User-Friendly Design: Built-in ramps on each side allow for easy access, accommodating wheelchairs and heavy containers.

• Durable Construction: The mild steel base with a diamond-plate surface ensures a stable and slip-resistant weighing area.

• Portability: Integrated wheels and handles facilitate easy movement and positioning of the scale.

• Adjustable Leveling Feet: These help optimize setup and ensure accurate measurements on uneven surfaces.

• Versatile Applications: Suitable for weighing wheelchair occupants, barrels, drums, or loaded dollies in various environments, including medical facilities and industrial settings.

• Reliable Performance: With a stabilization time of just 2 seconds, the scale provides quick and accurate readings.

• Long Battery Life: The internal rechargeable battery offers up to 70 hours of operation, ensuring continuous use without frequent recharging.

The PTM 500 [GK] combines functionality, durability, and ease of use, making it an excellent choice for professionals seeking a reliable weighing solution for large or heavy items
