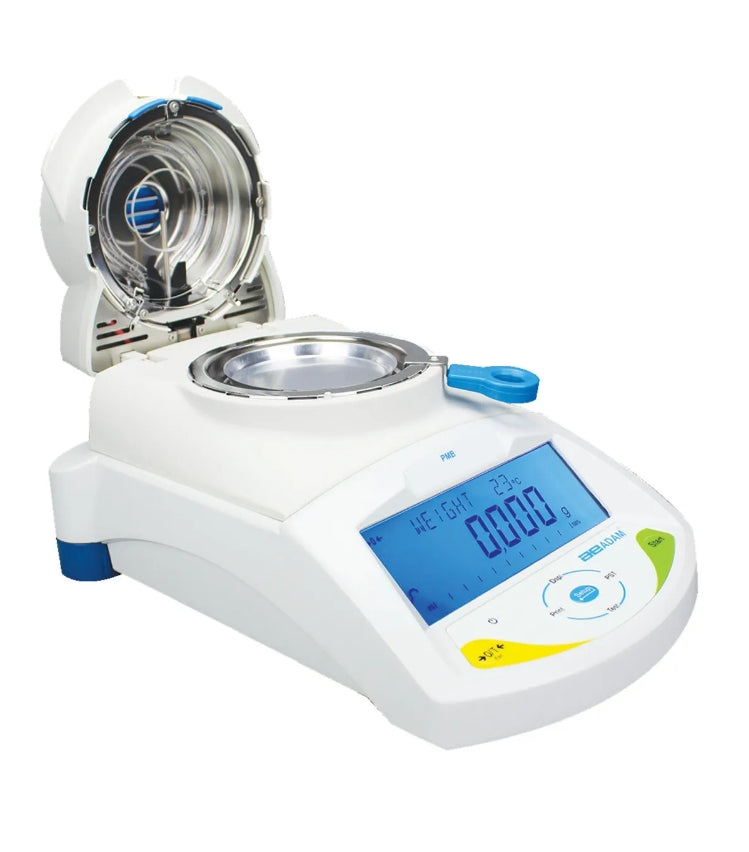

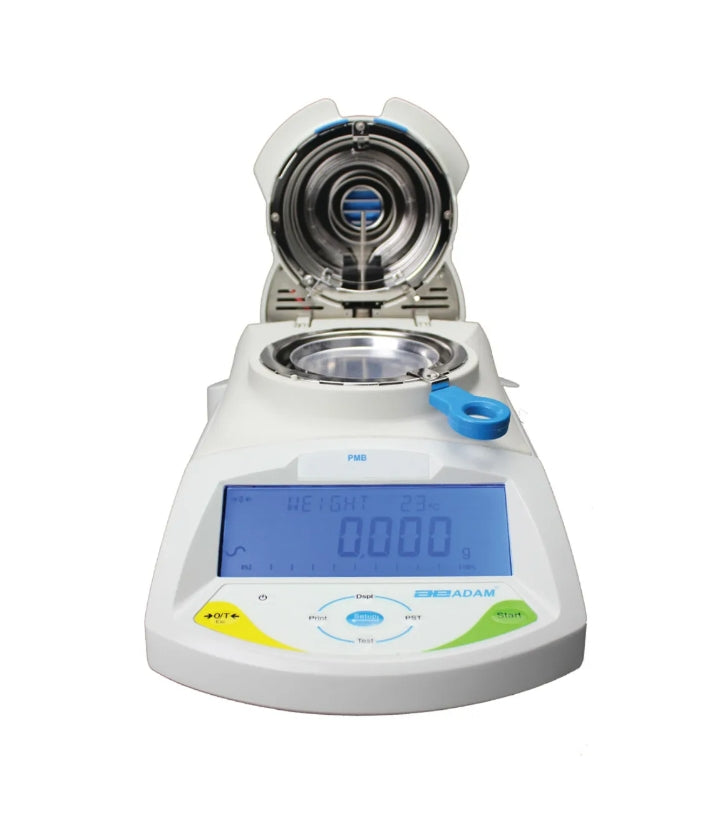

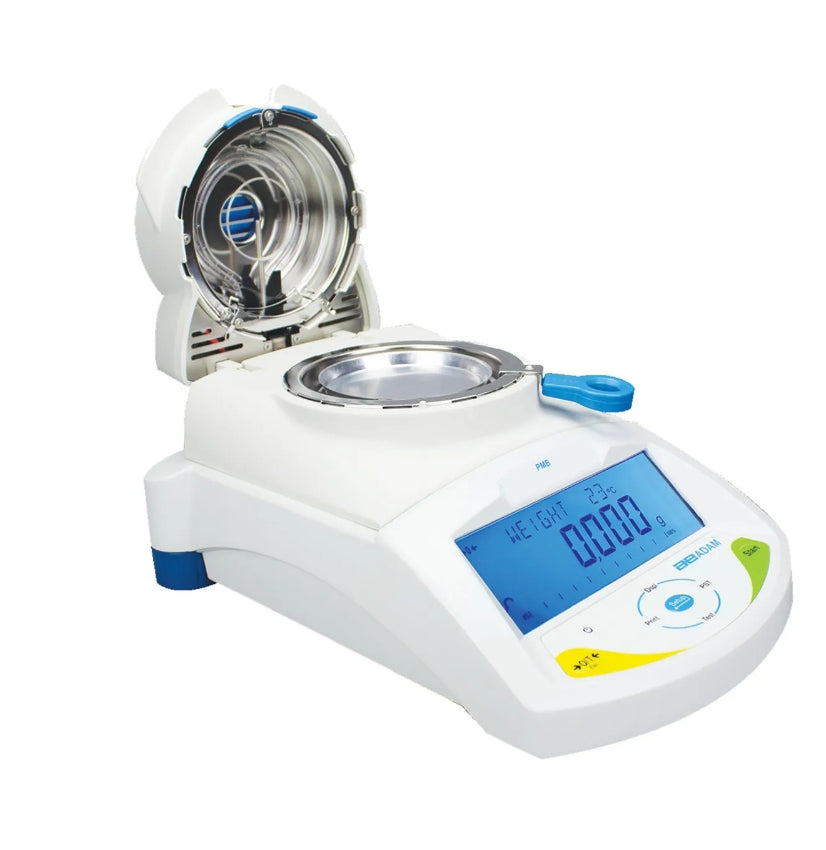

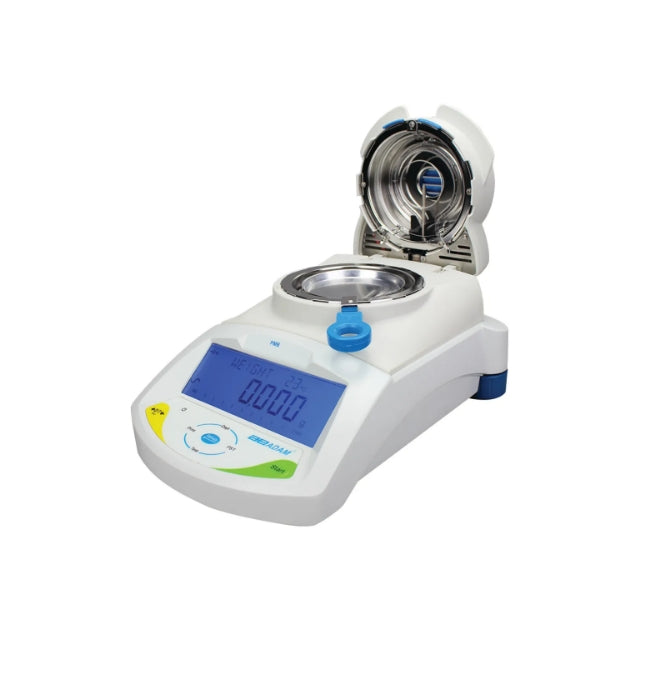

PMB Moisture Analyser-PMB 202

PMB 202 Moisture Analyzer Specifications

Overview: The PMB 202 Moisture Analyzer is designed to provide precise and efficient moisture determination, offering top value in its class. With a capacity of 200g and a readability of 0.01g, this analyzer is ideal for both laboratory and field applications. Its user-friendly features, such as a programmable backlight, multiple heating options, and robust data communication interfaces, make it a versatile tool for various moisture analysis tasks.

Applications:

• Weighing
• Moisture Determination

Key Features:

• Precise Measurement: Delivers accurate moisture analysis with a readability of 0.01g and a 200g capacity.
• USB and RS-232 Interfaces: Enable fast and reliable connections to computers and printers. A USB host port allows for storing test programs and results on flash drives, facilitating data communication without the need for additional software.
• Wide Temperature Range: The 400-watt halogen bulb provides a temperature range of 50°C to 160°C in 1°C increments, offering precise control over heating settings.
• Four Preset Drying Modes: Easily selectable modes allow quick setup for testing various products, enhancing efficiency in the lab.
• Audible Overload Alarm: Alerts users when the capacity is exceeded, preventing errors and protecting the analyzer.
• Automatic Testing: The device can automatically begin testing when the lid is closed, streamlining the testing process.
• Keypad and Zero-Tracking Feature: The intuitive keypad allows quick configuration, while the zero-tracking feature ensures the display returns to zero before each measurement, ensuring consistent accuracy.
• Capacity Tracker: Integrated into the display to monitor potential overloads.
• Scratch-Resistant Housing: The die-cast aluminum construction protects internal components and ensures durability.
• Pan Lifter: Allows easy placement and removal of samples.
• Heating Options: Features three settings: ramp-up, stepped temperatures, and single temperature, allowing flexibility in test methods.
• Calibration: Supports external calibration for both temperature and weight, ensuring ongoing accuracy.
• Multilingual Display: Allows use in multiple countries, making the device versatile for international applications.
• Internal Memory: Stores up to 49 different recipes and 99 test results, with additional storage available on flash drives.
• Security: Includes a security slot for an optional lock and cable to prevent theft.
• Warranty: Comes with a 5-year warranty for long-term reliability.

Technical Specifications:

• Model: PMB 202
• Capacity: 200g
• Readability: 0.01g / 0.05%
• Repeatability: 0.02g
• Linearity: 0.02g
• Pan Size: 100mm ø
• Weighing Units: %M, %S, ATRO %M, ATRO %S, g
• Interface: RS-232/USB
• Calibration: External calibration
• Display: Backlit LCD with 24mm high digits
• Power Supply: Power cord included
• Operating Temperature: 0° to 40°C / 32° to 104°F
• Construction: Die-cast aluminum
• Net Weight: 6kg
• Overall Dimensions: 250x360x185mm

Additional Features:

• Temperature Calibration: Ensures accurate measurements over a wide range of conditions.
• Quick Configuration: Easily set up and navigate using the intuitive keypad.
• Zero-Tracking Feature: Ensures the display returns to zero before each measurement.

Support and Warranty: The PMB 202 comes with a 5-year warranty. For support, including parts and how-to guides, visit the product support page.
