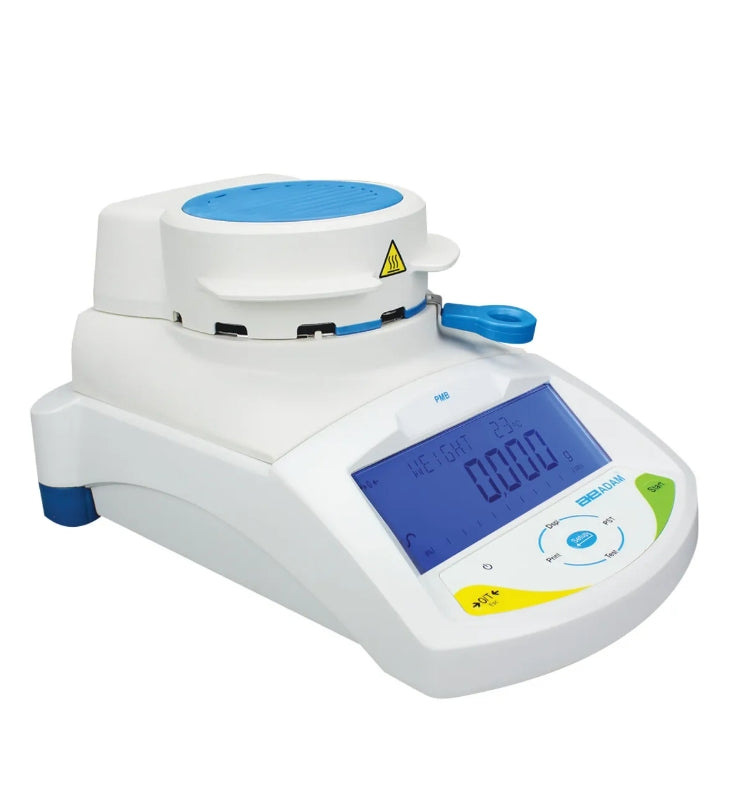

PMB Moisture Analyser-PMB 163

PMB 163 Moisture Analyzer Specifications

Overview: The PMB 163 Moisture Analyzer provides reliable and precise moisture determination, making it a valuable tool in laboratory and field applications. With a capacity of 160g and a readability of 0.001g, this model is designed for high accuracy in moisture analysis tasks. The combination of user-friendly features and robust data communication interfaces ensures efficient operation and data management.

Applications:

• Weighing
• Moisture Determination

Key Features:

• High Precision: Offers accurate moisture analysis with a 160g capacity and 0.001g readability, ensuring reliable results.
• Data Connectivity: Equipped with USB and RS-232 interfaces for seamless connection to computers and printers. An additional USB host port allows storing test programs and results on flash drives, enabling efficient data communication without requiring extra software.
• Temperature Control: Utilizes a 400-watt halogen bulb, offering a wide temperature range from 50°C to 160°C in 1°C increments, allowing precise control over drying processes.
• Four Preset Drying Modes: Simplifies setup for various moisture analysis tasks, improving efficiency and consistency.
• Audible Overload Alarm: Alerts the user when the analyzer's capacity is exceeded, safeguarding the device and ensuring accurate results.
• Automatic Testing: Initiates testing automatically when the lid is closed, streamlining the workflow.
• User-Friendly Interface: Features a programmable backlit LCD display, ensuring visibility in various lighting conditions, and a capacity tracker for easy monitoring.
• Zero-Tracking and Keypad: Ensures accurate measurements by returning the display to zero before each test and providing easy navigation through functions.
• Durable Construction: Made from scratch-resistant die-cast aluminum, offering protection to internal components and enhancing durability.
• Flexible Heating Options: Includes three customizable settings—ramp-up, stepped temperatures, and single temperature—allowing adaptation to different testing requirements.
• Calibration Options: Supports external calibration for both temperature and weight, ensuring continued accuracy.
• Multilingual Display: The interface can be set to various languages, making it suitable for international use.
• Internal Memory: Stores up to 49 different recipes and 99 test results, with additional storage available on external flash drives.
• Security Features: Includes a security slot for an optional lock and cable to prevent theft.
• Warranty: Covered by a 5-year warranty, ensuring long-term reliability.

Technical Specifications:

• Model: PMB 163
• Capacity: 160g
• Readability: 0.001g / 0.01%
• Repeatability: 0.001g
• Linearity: 0.002g
• Pan Size: 100mm ø
• Stabilization Time: 3 seconds
• Weighing Units: %M, %S, ATRO %M, ATRO %S, g
• Interface: RS-232/USB
• Calibration: External calibration
• Display: Backlit LCD with 24mm high digits
• Power Supply: Power cord included
• Operating Temperature: 0° to 40°C / 32° to 104°F
• Construction: Die-cast aluminum
• Net Weight: 6kg
• Dimensions: 250x360x185mm

Additional Features:

• Temperature Calibration: Ensures accuracy across a wide range of conditions.
• Quick Configuration: Intuitive keypad allows for easy setup and operation.
• Zero-Tracking Feature: Maintains display accuracy by returning to zero before each test.

Support and Warranty: The PMB 163 comes with a 5-year warranty.
