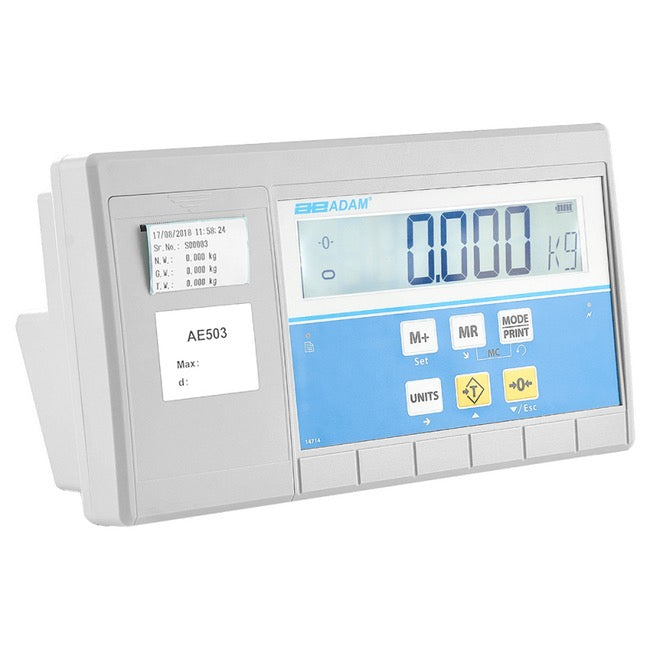

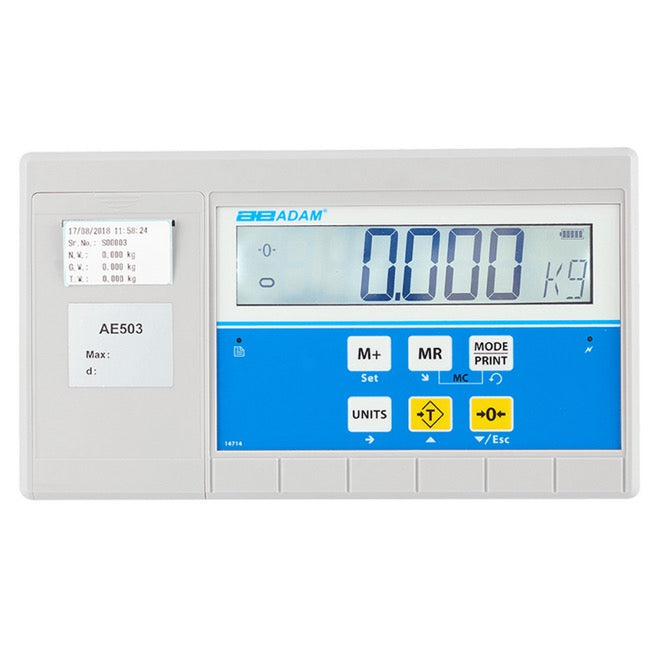

AE 503 Label Printing Indicator
AE 503 Label Printing Indicator
AE 503 Label Printing Indicator
Combined Weighing and Label Printing Solution for Industrial Use
Key Features
- Capacity: Selectable (user-configurable)
- Display: Backlit LCD with 34mm digits
- Built-in Printer: 50mm-wide label printing (barcodes, QR codes, custom logos)
- Keypad: Sealed, color-coded for easy operation
- Construction: Durable ABS plastic housing
Applications
- Weighing, parts counting, percentage weighing
- Checkweighing, check counting, dynamic/animal weighing
- Accumulation, display hold, averaging, peak hold
Technical Specifications
- Weighing Units: g, kg, lb, oz, ct, dr, mm, T, tonne
- Internal Resolution: 1:600,000
- Interfaces: RS-232 (for computers/printers)
- Calibration: External calibration
- Stabilization Time: 2 seconds
- Power Options: Rechargeable lead-acid battery (200h max) or 12VDC 3A adapter
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Dimensions: 300 × 125 × 170mm
- Net Weight: 3.5kg
Additional Features
- Programmable backlight (always on/off/weighing-activated)
- Checkweighing with visual/audible alerts
- Zero-tracking and auto power-off
- Parts counting optimization
- 3-year warranty
